product details

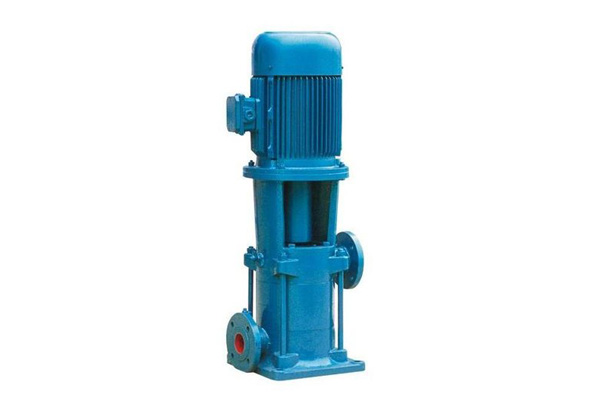

LG type multistage feed water pump for high rise building

Product features

1. Advanced hydraulic model: high efficiency, wide range of performance.

2. Less operation and maintenance costs: the use of high-quality mechanical seal, wear-resistant, no leakage, long service life, low failure rate, with less operation and maintenance costs.

3. Unique components, reduce noise: unique hydraulic components design, good flow performance, greatly reduce flow noise.

4. Vertical structure, small floor area.


021-62586878

Product overview

LG type multistage water supply pump for high-rise buildings is a vertical single suction multi-stage segmented centrifugal pump, which is used to transport normal temperature clean water and liquid with physical and chemical properties similar to that of clear water.

LG series pump is installed vertically. The motor shaft and pump shaft are connected by claw type coupling. It has the advantages of compact structure, low noise and small floor area.

The company has strong technical force, rich production experience and perfect detection means, so as to ensure the stability and reliability of product quality.

Product features

1. Advanced hydraulic model: high efficiency, wide range of performance.

2. Less operation and maintenance costs: the use of high-quality mechanical seal, wear-resistant, no leakage, long service life, low failure rate, with less operation and maintenance costs.

3. Unique components, reduce noise: unique hydraulic components design, good flow performance, greatly reduce flow noise.

4. Vertical structure, small floor area.

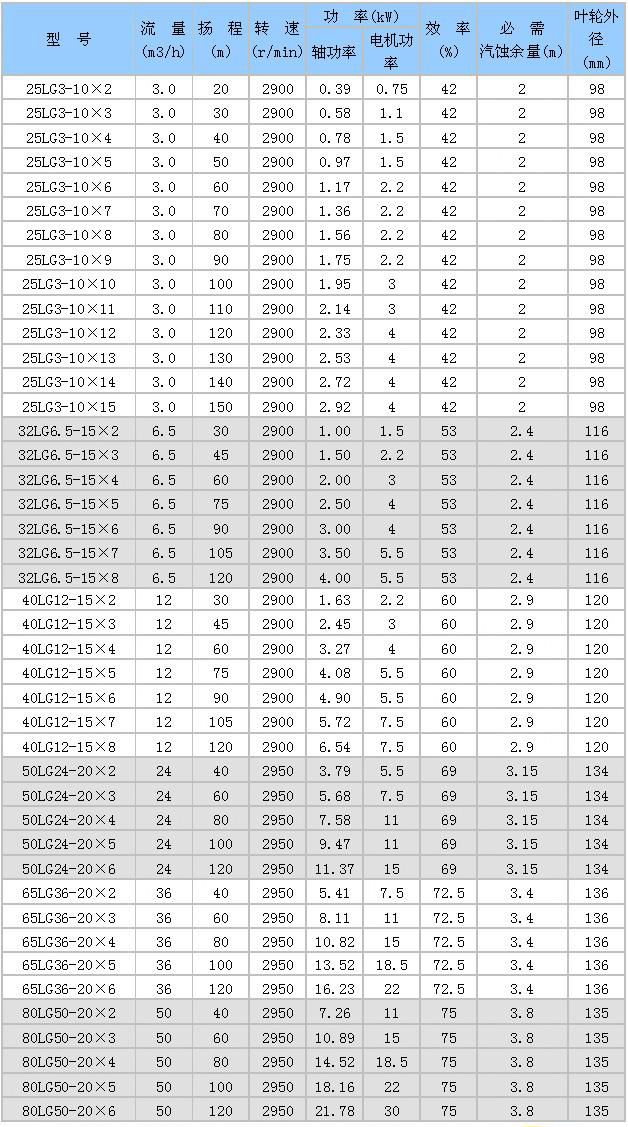

technical parameter

Flow rate: 3.0-50m3/h;

Lift: 20-150m;

Power: 0.75-30kw;

Speed: 2900r / min;

Diameter: φ 25 - φ 80;

Temperature range: 0 - + 80 ℃;

Working pressure: ≤ 1.2MPa.

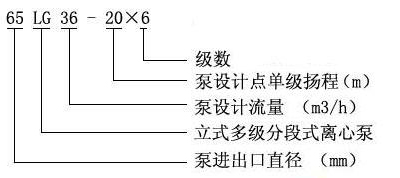

Model meaning


LG型高層建筑多級給水泵  性能參數.jpg

Application scope of LG type multi-stage feed water pump for high-rise buildings:

It is mainly used for water supply of high-rise buildings, water supply and drainage of factories, mines and enterprises as well as circulating water for low-pressure boilers.


LG型高層建筑多級給水泵  安裝尺寸.jpg
